BC856B, BC856 PNP Transistor

BC856B Description

PNP Transistor General Purpose SOT-23 .

BC856B Features

* Low current (maximum100 mA)

BC856B Applications

* General purpose switching and amplification Maximum Ratings and Characteristics : Tamb = 25°C unless otherwise specified Parameter Symbol Value Collector - Base Voltage - BC856 - BC857 - BC858 VCBO -80 -50 -30 Collector - Emitter Voltage - BC856 - BC857 - BC858 Emitter - Base V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BC856B, BC856. Please refer to the document for exact specifications by model.

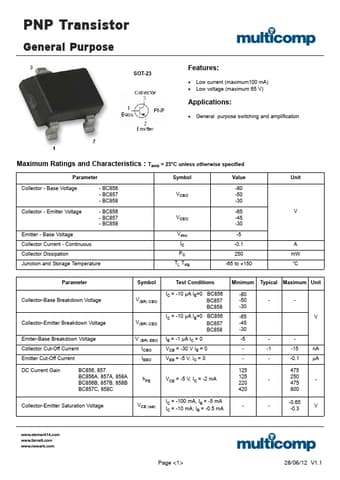

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BC856B, BC856
Manufacturer
Multicomp
File Size
609.74 KB
Datasheet
BC856-Multicomp.pdf
Description
PNP Transistor
Note
This datasheet PDF includes multiple part numbers: BC856B, BC856.
Please refer to the document for exact specifications by model.
