2W02 - Silicon Bridge Rectifier

Download the 2W02 datasheet PDF (2W005 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for silicon bridge rectifier.

Features

  •   Surge overload rating 60 amperes peak.
  •   Ideal for printed circuit board.
  •   Reliable low cost construction utilizing molded plastic technique results in expensive product Specifications: Lead : Sliver plated copper lead Reverse Voltage : 50 to 1,000Volts Forward Current : 2 Amperes Mounting position : Any Maximum Ratings And Electrical Characteristics: Rating at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive o.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (2W005-Multicomp.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 2W02
Manufacturer Multicomp
File Size 401.86 KB
Description Silicon Bridge Rectifier
Datasheet download datasheet 2W02 Datasheet

📁 Similar Datasheet

  • 2W02 - Silicon Bridge Rectifiers (GME)
  • 2W02 - Glass Passivated Single-Phase Bridge Rectifier (First Silicon)
  • 2W02 - Glass Passivated Single-Phase Bridge Rectifiers (GOOD-ARK)
  • 2W02 - SINGLE PHASE SILICON BRIDGE RECTIFIER (KD)
  • 2W02 - Single Phase 2.0 AMPS. Silicon Bridge Rectifiers (Taiwan Semiconductor)
  • 2W02 - Single-Phase Silicon Bridge Rectifier (MERITEK)
  • 2W02 - Silicon Bridge Rectifiers (LGE)
  • 2W02 - SILICON BRIDGE RECTIFIER (JINAN JINGHENG)
  • 2W02 - SILICON BRIDGE RECTIFIERS (PAN JIT)
  • 2W02 - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (STS)
Other Datasheets by Multicomp
  • 2W005 - Silicon Bridge Rectifier
  • 2W01 - Silicon Bridge Rectifier
  • 2W04 - Silicon Bridge Rectifier
  • 2W06 - Silicon Bridge Rectifier
  • 2W08 - Silicon Bridge Rectifier

Full PDF Text Transcription

Click to expand full text

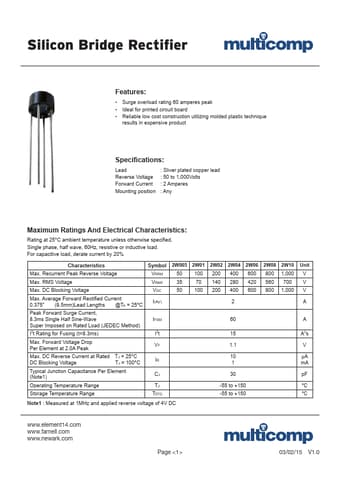

Silicon Bridge Rectifier Features: •  Surge overload rating 60 amperes peak •  Ideal for printed circuit board •  Reliable low cost construction utilizing molded plastic technique results in expensive product Specifications: Lead : Sliver plated copper lead Reverse Voltage : 50 to 1,000Volts Forward Current : 2 Amperes Mounting position : Any Maximum Ratings And Electrical Characteristics: Rating at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20% Characteristics Max. Recurrent Peak Reverse Voltage Max. RMS Voltage Max. DC Blocking Voltage Max. Average Forward Rectified Current 0.375"   (9.5mm)Lead Lengths   @Ta = 25°C Peak Forward Surge Current, 8.
