2N2102 - Transistor

Multicomp

📥 Download Datasheet

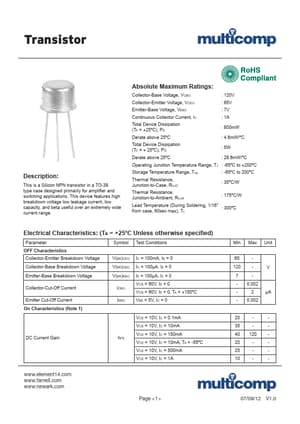

2N2102 Datasheet Preview — Preview of 2N2102 PDF

datasheet Preview Page 2

Datasheet Details

Part number: 2N2102
Manufacturer: Multicomp
File Size: 361.83 KB
Datasheet: 2N2102-Multicomp.pdf
Description: Transistor

2N2102 Product details

Description

This is a Silicon NPN transistor in a TO-39 type case designed primarily for amplifier and switching applications.

Features

high breakdown voltage low leakage current, low capacity, and beta useful over an extremely wide current range. Absolute Maximum Ratings: Collector-Base Voltage, Vcbo : 120V Collector-Emitter Voltage, Vceo : 65V Emitter-Base Voltage, Vebo : 7V Continuous Collector Current, Ic : 1A Total Device Dissipation (Ta = +25ºC), Pd : 800mW Derate above 25ºC : 4.6mW/ºC Total Device Dissipation (Tc = + 25ºC), Pd : 5W Derate above 25ºC : 28.6mW/ºC Operating Junction Temperature Range, Tj :.
