TMR7506-0500B Unibody Low Temperature Coefficient Current Sensor

TMR7506-0500B Description

Datasheet Version 1.2 TMR7506-B Unibody Low Temperature Coefficient Current Sensor .
TMR7506-B is an open loop current sensor for accurate measurement of DC, AC, pulsed current and arbitrary waveform current with galvanic isolation bet.

TMR7506-0500B Features

* Low temperature coefficient
* Galvanic isolation
* High immunity to external interference
* Excellent linearity
* Light weight design

TMR7506-0500B Applications

* DC motor drives
* Inverters and variable frequency drives (VFD)
* Uninterruptible power supplies (UPS)
* Power supplies for communication devices
* Battery management system (BMS)
* Switching power supplies
* Power supplies for welding applic

📥 Download Datasheet

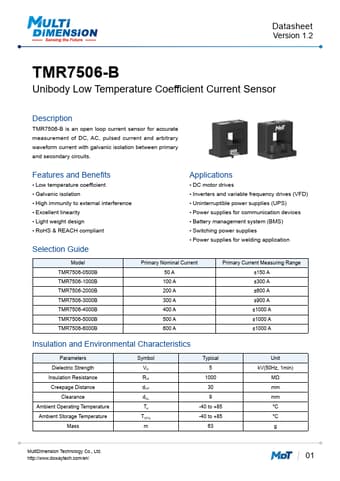

Preview of TMR7506-0500B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TMR7506-0500B
Manufacturer
MultiDimension
File Size
1.05 MB
Datasheet
TMR7506-0500B-MultiDimension.pdf
Description
Unibody Low Temperature Coefficient Current Sensor
