AMR1321S, AMR1320S - Omnipolar Switch Sensor

MultiDimension

The AMR1321S by MultiDimension is a Omnipolar Switch Sensor. Below is the official datasheet preview.

📥 Download Datasheet

AMR1321S Omnipolar Switch Sensor by MultiDimension - Datasheet Preview — Official preview page of the **AMR1321S** Omnipolar Switch Sensor datasheet (MultiDimension).

Datasheet Details

Part number	AMR1321S, AMR1320S
Manufacturer	MultiDimension
File Size	1.18 MB
Description	Omnipolar Switch Sensor
Datasheet	AMR1320S-MultiDimension.pdf
Note	This datasheet PDF includes multiple part numbers: AMR1321S, AMR1320S. Please refer to the document for exact specifications by model.

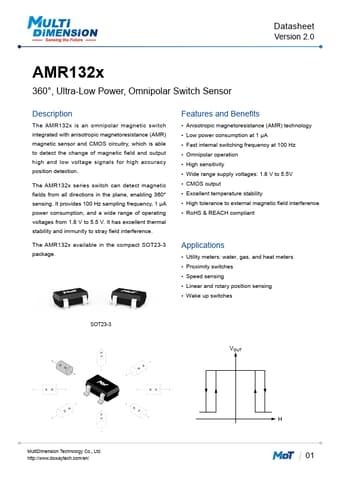

Additional preview pages of the AMR1321S datasheet.

AMR1321S Product details

Description

The AMR132x is an omnipolar magnetic switch integrated with anisotropic magnetoresistance (AMR) magnetic sensor and CMOS circuitry, which is able to detect the change of magnetic field and output high and low voltage signals for high accuracy position detection.

Features

Anisotropic magnetoresistance (AMR) technology.
Low power consumption at 1 μA.
Fast internal switching frequency at 100 Hz.
Omnipolar operation.
High sensitivity.
Wide range supply voltages: 1.8 V to 5.5V.
CMOS output.
Excellent temperature stability.
High tolerance to external magnetic field interference.
RoHS & REACH compliant.
