SAFSE1G96KD0T00 - Filters

Download the SAFSE1G96KD0T00 datasheet PDF. This datasheet also covers the SAFEB1G96FA0F00 variant, as both devices belong to the same filters family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SAFEB1G96FA0F00-MuRata.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
SAFS1441MC1B0T CERAMIC MICROWAVE FILTERS SAW FILTERS Murata Manufacturing
SAF Tantalum Capacitors Sharma Electro
SAF-C161K 16-Bit CMOS Microcontroller Infineon Technologies
SAF-C161K-L25M 16-Bit Single-Chip Microcontroller Infineon Technologies AG
SAF-C161K-LM 16-Bit Single-Chip Microcontroller Infineon Technologies AG

Other Datasheets by Murata

Part Number Description
SAFSE1G95KC0T00 Filters
SAFSE1G95KD0F00 Filters
SAFSE1G57KA0T05 SAW Filters
SAFSE1G57KA0T09 SAW Filters
SAFSE1G57KC0T00 SAW Filters

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

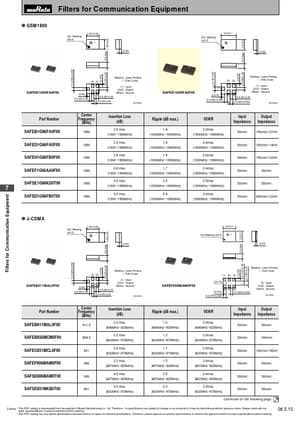

Filters for Communication Equipment o GSM1900 Dot Marking (ø0.3) 1.35±0.05 ∗ (0.20) Dot Marking (ø0.3) 2.0±0.1 ∗ (0.20) 0.6 max. 1.4±0.1 0.6 max. 1.05±0.05 (0.075) 2-0.35±0.05 5-0.45±0.05 (0.075) 2-0.25±0.05 5-0.325±0.050 SAFEB1G96FA0F00 (2) (3) Marking : Laser Printing ∗ : EIAJ Code (1) (0.05) 2-0.25±0.05 (5) (4) 5-0.25±0.05 2-0.25±0.05 (1) : Input (3)(4) : Output Others : Ground (in mm) SAFED1G96FA0F00 (1) (0.075) 2-0.325±0.050 (2) (3) Marking : Laser Printing ∗ : EIAJ Code (1) : Input (3)(4) : Output Others : Ground (5) (4) 5-0.40±0.05 2-0.325±0.050 (in mm) Part Number SAFEB1G96FA0F00 SAFED1G96FA0F00 SAFEH1G96FB0F00 SAFEF1G96AA0F00 SAFSE1G96KD0T00 7 SAFSD1G96FB0T00 Center Frequency (MHz) 1960 1960 1960 1960 1960 1960 Insertion Loss (dB) 2.6 max.
