MST716A-A - Small Size LCD TV Processor

Download the MST716A-A datasheet PDF (MST716A included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for small size lcd tv processor.

Description

The MST716A is a high quality ASIC for NTSC/PAL/SECAM car TV application.

It receives analog NTSC/PAL/SECAM CVBS and S-Video inputs from TV tuners, DVD or VCR sources, including weak and distorted signals, as well as analog RGB input from GPS systems.

Features

  • n Video Decoder Ÿ Supports NTSC, PAL and SECAM video input formats Ÿ 2D NTSC and PAL comb-filter for Y/C separation of CVBS input Ÿ Single S-video and/or multiple CVBS inputs Ÿ Supports closed-caption and V-chip Ÿ ACC, AGC, and DCGC (Digital Chroma Gain Control) n Analog Input Ÿ Supports RGB input format from PC, camcorders and GPS Ÿ Supports video input 480i, 480p, 576i, 576p, 720p, 1080i; RGB input resolution in 640x480, 800x480, and 800x600 (SVGA) Ÿ 3-channel low-power 10-bit ADCs integration.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MST716A-Mstar.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MST716A-A
Manufacturer Mstar
File Size 834.07 KB
Description Small Size LCD TV Processor
Datasheet download datasheet MST716A-A Datasheet

📁 Similar Datasheet

  • MST703 - Small Size LCD TV Processor (Master)
  • MST706 - Small Size LCD TV Processor (Master)
  • MST720C-TV-FM - MST720C-TV-FM (ETC)
  • MST7xxx - PHOTO GAP DETECTOR (QT Optoelectronics)
  • MST-12110542 - TV CONTROL BOARD SPECIFICATION (ETC)
  • MST-720 - Miniature Sensor Radio Transmitter (Lotek)
  • MST-720-M - Miniature Sensor Radio Transmitter (Lotek)
  • MST-720-MT - Miniature Sensor Radio Transmitter (Lotek)
  • MST-720-T - Miniature Sensor Radio Transmitter (Lotek)
  • MST-820 - Miniature Sensor Radio Transmitter (Lotek)
Other Datasheets by Mstar

Full PDF Text Transcription

Click to expand full text

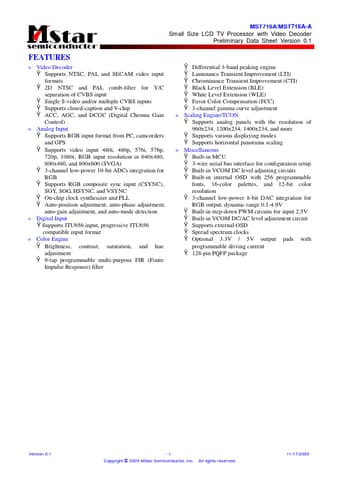

Edited by Foxit PDF Editor Copyright (c) by Foxit Software Company, 2004 For Evaluation Only. MST716A/MST716A-A Small Size LCD TV Processor with Video Decoder Preliminary Data Sheet Version 0.
