MST716A - Small Size LCD TV Processor

Description

The MST716A is a high quality ASIC for NTSC/PAL/SECAM car TV application.

It receives analog NTSC/PAL/SECAM CVBS and S-Video inputs from TV tuners, DVD or VCR sources, including weak and distorted signals, as well as analog RGB input from GPS systems.

Features

  • n Video Decoder Ÿ Supports NTSC, PAL and SECAM video input formats Ÿ 2D NTSC and PAL comb-filter for Y/C separation of CVBS input Ÿ Single S-video and/or multiple CVBS inputs Ÿ Supports closed-caption and V-chip Ÿ ACC, AGC, and DCGC (Digital Chroma Gain Control) n Analog Input Ÿ Supports RGB input format from PC, camcorders and GPS Ÿ Supports video input 480i, 480p, 576i, 576p, 720p, 1080i; RGB input resolution in 640x480, 800x480, and 800x600 (SVGA) Ÿ 3-channel low-power 10-bit ADCs integration.

📥 Download Datasheet

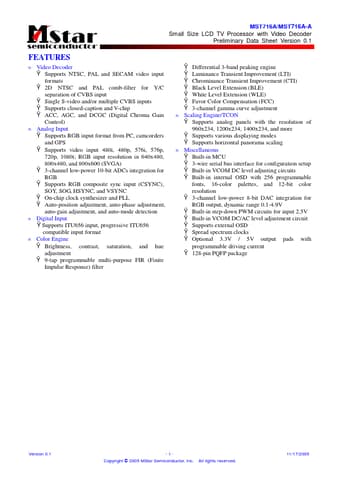

Datasheet preview – MST716A

Datasheet Details

Part number MST716A
Manufacturer Mstar
File Size 834.07 KB
Description Small Size LCD TV Processor
Datasheet download datasheet MST716A Datasheet
