UAA1016B - ZERO VOLTAGE CONTROLLER

UAA1016B Description

Order this document by UAA1016B/D UAA1016B Zero Voltage Controller The UAA1016B is designed to drive triacs with the Zero Voltage technique which all.
The circuit delivers current pulses to the triac at zero crossings of the main line sensed by Pin 8 through Rsync.

UAA1016B Features

* Proportional Temperature Control Over an Adjustable Band
* Adjustable Burst Frequency (to Comply with Standards)
* No DC Current Component Through the Main Line (to Comply with Standards)
* Negative Output Current Pulses (Triac Quadrants 2 and 3)
* Direct A

📥 Download Datasheet

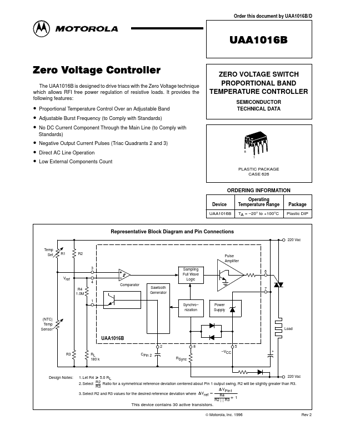

Preview of UAA1016B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UAA1016B
Manufacturer
Motorola
File Size
118.56 KB
Datasheet
UAA1016B_Motorola.pdf
Description
ZERO VOLTAGE CONTROLLER
