SN74LS73A DUAL JK NEGATIVE EDGE-TRIGGERED FLIP-FLOP

DUAL JK NEGATIVE EDGE-TRIGGERED FLIP-FLOP The SN54LS / 74LS73A offers individual J, K, clear, and clock inputs. These dual flip-flops are designed so that when the clock goes HIGH, the inputs are enabled and data will be accepted. The logic level of the J and K inputs may be allowed to change when the clock pulse is HIGH and the bistable will perform according to the truth table as long as minimum set-up times are observed. Input data is transferred to the outputs on the negative-going edge of t.

SN74LS73_MotorolaInc.pdf

This datasheet PDF includes multiple part numbers: SN74LS73A, SN74LS73. Please refer to the document for exact specifications by model.

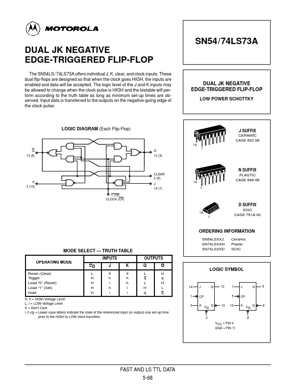

SN74LS73A Datasheet Preview Page 2 SN74LS73A Datasheet Preview Page 3

Datasheet Details

Part number:

SN74LS73A, SN74LS73

Manufacturer:

Motorola

File Size:

73.83 KB

Description:

Dual jk negative edge-triggered flip-flop.

Note:

This datasheet PDF includes multiple part numbers: SN74LS73A, SN74LS73.
Please refer to the document for exact specifications by model.
