S12BKPV1D MC9S12DT128 Device User Guide V02.09

of Changes Initial version (parent doc v2.03 dug for dp256). Updated version after review Changed Partname, added pierce mode, updated electrical characteristics some minor corrections Replaced Star12 by HCS12 Updated electrical spec after MC-Qualiﬁcation (IOL/IOH), Data for Pierce, NVM reliability .

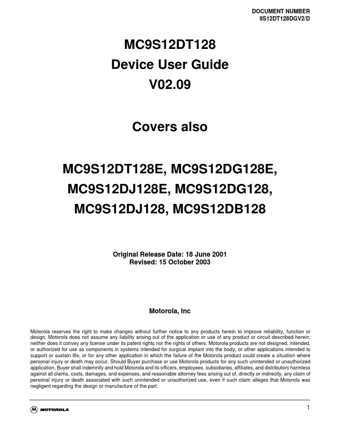

DOCUMENT NUMBER 9S12DT128DGV2/D MC9S12DT128 Device User Guide V02.09 Covers also MC9S12DT128E, MC9S12DG128E, MC9S12DJ128E, MC9S12DG128, MC9S12DJ128, MC9S12DB128 Original Release Date: 18 June 2001 Revised: 15 October 2003 Motorola, Inc Motorola reserves the right to make changes without further notice to any products herein to improve reliability, function or design. Motorola does not assume any liability arising out of the application or use of any product or circuit described herein; neithe.

S12BKPV1D Features

* Corrected KWP5 pin name in Fig 2-1 112LQFP pin assignments Corrected pull resistor CTRL/reset states for PE7 and PE4-PE0 in Table 2.1 “Signal Properties” Mentioned “S12LRAE” bootloader in Flash section 17 Corrected footnote on clamp of TEST pin under Table A-1 “Absolute Maximum Ratings” Corrected m
