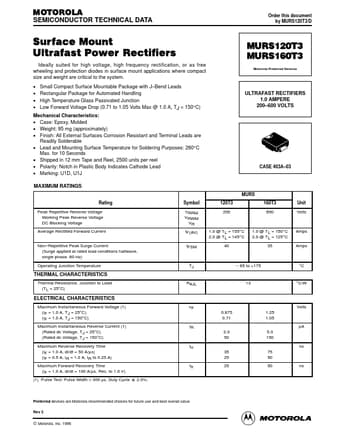

MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document by MURS120T3/D
Surface Mount Ultrafast Power Rectifiers
Ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes in surface mount applications where compact size and weight are critical to the system. • • • • Small Compact Surface Mountable Package with J–Bend Leads Rectangular Package for Automated Handling High Temperature Glass Passivated Junction Low Forward Voltage Drop (0.71 to 1.05 Volts Max @ 1.0 A, TJ = 150°C)
MURS120T3 MURS160T3
Motorola Preferred Devices
ULTRAFAST RECTIFIERS 1.
MURS120T3 Datasheet
