MUR3060WT - ULTRAFAST RECTIFIERS

Product Overview

Motorola

📥 Download Datasheet

MUR3060WT ULTRAFAST RECTIFIERS by Motorola - Datasheet Preview — Datasheet preview – MUR3060WT

Datasheet Details

Part number	MUR3060WT
Manufacturer	Motorola
File Size	103.97 KB
Description	ULTRAFAST RECTIFIERS
Datasheet	MUR3060WT Datasheet
Note	This datasheet PDF includes multiple part numbers: MUR3060WT, MUR3020WT. Please refer to the document for exact specifications by model.

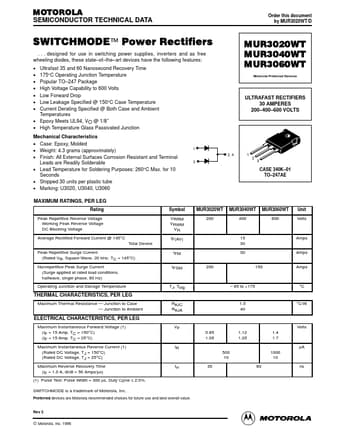

Additional preview pages of the MUR3060WT datasheet.

Product details

Features

Ultrafast 35 and 60 Nanosecond Recovery Time 175°C Operating Junction Temperature Popular TO.
247 Package High Voltage Capability to 600 Volts Low Forward Drop Low Leakage Specified @ 150°C Case Temperature Current Derating Specified @ Both Case and Ambient Temperatures.
Epoxy Meets UL94, VO @ 1/8″.
High Temperature Glass Passivated Junction Mechanical Characteristics.
Case: Epoxy, Molded.
Weight: 4.3 grams (approximately).
Finish: All Externa.
