MSD601-RT1 - NPN General Purpose Amplifier Transistors

Features

  • ed.

📥 Download Datasheet

📁 Similar Datasheet

  • MSD601-RT1 - NPN General Purpose Amplifier Transistors (ETL)
  • MSD601-RT1 - NPN General Purpose Amplifier Transistors (Leshan Radio Company)
  • MSD601-RT1 - NPN General Purpose Amplifier Transistors (ON Semiconductor)
  • MSD601-RT1G - NPN General Purpose Amplifier Transistor (ON Semiconductor)
  • MSD601-ST1 - NPN General Purpose Amplifier Transistors (ETL)
  • MSD601-ST1 - NPN General Purpose Amplifier Transistors (Leshan Radio Company)
  • MSD601-ST1 - NPN General Purpose Amplifier Transistors (ON Semiconductor)
  • MSD601 - NPN General Purpose Transistors (Weitron)
  • MSD602-RT1 - NPN General Purpose Amplifier Transistor (Leshan Radio Company)
  • MSD602-RT1 - NPN General Purpose Amplifier Transistor (ETL)
Other Datasheets by Motorola
  • MSD601-ST1 - NPN General Purpose Amplifier Transistors
  • MSD602-RT1 - NPN General Purpose Amplifier Transistor Surface Mount
  • MSD6100 - Dual Switching Diode Common Cathode
  • MSD6102 - DUAL DIODE COMMON CATHODE
  • MSD6150 - Dual Diode Common Anode
  • MSD1010T1 - PNP Silicon Driver Transistors
  • MSD1328-RT1 - NPN Low Voltage Output Amplifier Surface Mount
  • MSD1819A-RT1 - General Purpose Amplifier Transistor

Full PDF Text Transcription

Click to expand full text

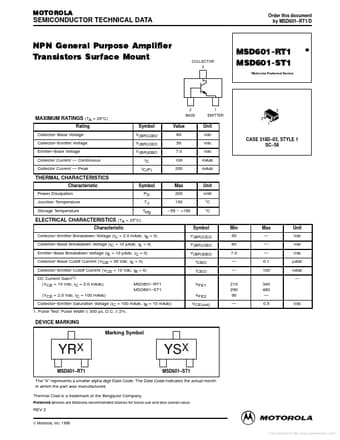

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MSD601–RT1/D NPN General Purpose Amplifier Transistors Surface Mount COLLECTOR 3 MSD601-RT1 MSD601-ST1 *Motorola Preferred Device * MAXIMUM RATINGS (TA = 25°C) Rating Collector–Base Voltage Collector–Emitter Voltage Emitter–Base Voltage Collector Current — Continuous Collector Current — Peak Symbol V(BR)CBO V(BR)CEO V(BR)EBO IC IC(P) Value 60 50 7.0 100 200 2 BASE 1 EMITTER Unit Vdc Vdc Vdc mAdc mAdc 3 2 1 CASE 318D–03, STYLE 1 SC–59 THERMAL CHARACTERISTICS Characteristic Power Dissipation Junction Temperature Storage Temperature Symbol PD TJ Tstg Max 200 150 – 55 ~ +150 Unit mW °C °C ELECTRICAL CHARACTERISTICS (TA = 25°C) Characteristic Collector–Emitter Breakdown Voltage (IC = 2.
