MRA100035L Datasheet - Motorola

MRA100035L UHF POWER TRANSISTOR

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MRA1000 3.5L/D The RF Line UHF Power Transistor Designed primarily for wideband, large signal output and driver amplifier stages to 1000 MHz. Designed for Class A Linear Power Amplifiers Specified 19 Volt, 1000 MHz Characteristics: Output Power 3.5 Watts Power Gain 10 dB, Small Signal Built In Matching Network for Broadband Operation Gold Me.

MRA100035L Datasheet (78.69 KB)

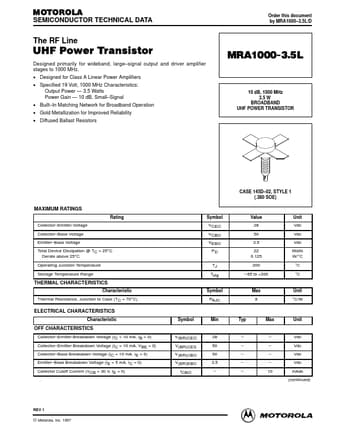

Preview of MRA100035L PDF
MRA100035L Datasheet Preview Page 2 MRA100035L Datasheet Preview Page 3

Datasheet Details

Part number:

MRA100035L

Manufacturer:

Motorola

File Size:

78.69 KB

Description:

Uhf power transistor.
