MPC9109 - LOW VOLTAGE 1:18 CLOCK DISTRIBUTION CHIP

Features

  • the capability to select either a differential LVPECL or an LVCMOS compatible input. The 18 outputs are 2.5V or 3.3V LVCMOS compatible and feature the drive strength to drive 50Ω series or parallel terminated transmission lines. With output.
  • to.
  • output skews of 200ps, the MPC9109 is ideal as a clock distribution chip for the most demanding of synchronous systems. The 2.5V outputs also make the device ideal for supplying clocks for a high www. DataSheet4U. com performance Pentium II™.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MPC9109 Low Voltage 1:18 Clock Distribution Chip Integrated Device Technology
MPC9230 800MHz Low Voltage PECL Clock Synthesizer IDT
MPC9239 900 MHz Low Voltage LVPECL Clock Synthesizer Freescale Semiconductor
MPC92432 1360 MHz Dual Output LVPECL Clock Synthesizer IDT
MPC92433 1428 MHz Dual Output LVPECL Clock Synthesizer Freescale Semiconductor

Other Datasheets by Motorola Semiconductor (now NXP Semiconductors)

Part Number Description
MPC9100 DUAL PLL CLOCK GENERATOR
MPC9108 MULTIPLE OUTPUT CLOCK SYNTHESIZER
MPC911 LOW-VOLTAGE 1:9 DIFFERENTIAL ECL/HSTL TO HSTL CLOCK DRIVER
MPC9120 1:10 LVCMOS FANOUT BUFFER
MPC9140 1:18 LVCMOS FANOUT BUFFER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

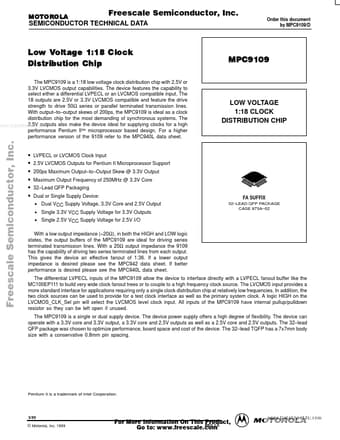

MOTOROLA Freescale Semiconductor, Inc. Order this document by MPC9109/D SEMICONDUCTOR TECHNICAL DATA Low Voltage 1:18 Clock Distribution Chip MPC9109 Freescale Semiconductor, Inc... The MPC9109 is a 1:18 low voltage clock distribution chip with 2.5V or 3.3V LVCMOS output capabilities. The device features the capability to select either a differential LVPECL or an LVCMOS compatible input. The 18 outputs are 2.5V or 3.3V LVCMOS compatible and feature the drive strength to drive 50Ω series or parallel terminated transmission lines. With output–to–output skews of 200ps, the MPC9109 is ideal as a clock distribution chip for the most demanding of synchronous systems. The 2.5V outputs also make the device ideal for supplying clocks for a high www.DataSheet4U.
