MPC2001 Datasheet - Motorola

MPC2001 256KB Asynchronous Secondary Cache Module

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MPC2001/D 256KB Asynchronous Secondary Cache Module for PowerPC™ The MPC2001 is designed to provide asynchronous 256KB L2 cache for the PowerPC 60x processors. The module is configured as 32K x 64 bits in a 136 pin dual readout single inline memory module (DIMM). The module uses eight of Motorola’s MCM6206 CMOS RAMs. Eight write enables are provided for byte write control. The cache is designed to interface with the PowerPC 60x bus .

MPC2001 Datasheet (74.27 KB)

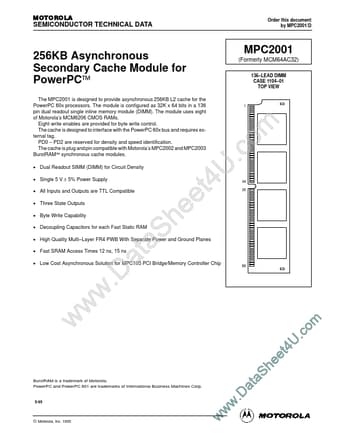

Preview of MPC2001 PDF
MPC2001 Datasheet Preview Page 2 MPC2001 Datasheet Preview Page 3

Datasheet Details

Part number:

MPC2001

Manufacturer:

Motorola

File Size:

74.27 KB

Description:

256kb asynchronous secondary cache module.
