MJE1123 - Bipolar Power PNP Transistor

Motorola

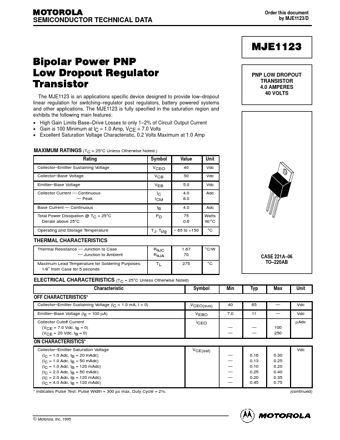

The MJE1123 by Motorola is a Bipolar Power PNP Transistor. Below is the official datasheet preview.

📥 Download Datasheet

MJE1123 Bipolar Power PNP Transistor by Motorola - Datasheet Preview — Official preview page of the MJE1123 Bipolar Power PNP Transistor datasheet (Motorola).

Datasheet Details

Part number	MJE1123
Manufacturer	Motorola
File Size	116.04 KB
Description	Bipolar Power PNP Transistor
Datasheet	MJE1123_MotorolaInc.pdf
Additional preview pages of the MJE1123 datasheet.

MJE1123 Product details

Features

High Gain Limits Base.
Drive Losses to only 1.
2% of Circuit Output Current.
Gain is 100 Minimum at IC = 1.0 Amp, VCE = 7.0 Volts.
Excellent Saturation Voltage Characteristic, 0.2 Volts Maximum at 1.0 Amp.
