MC6882A - OCTAL THREE-STATE BUFFER/LATCH

Name: MC6882A
SKU: MC6882A-1411230

Motorola

The MC6882A by Motorola is a OCTAL THREE-STATE BUFFER/LATCH. Below is the official datasheet preview.

Datasheet Details

Part number	MC6882A
Manufacturer	Motorola
File Size	124.61 KB
Description	OCTAL THREE-STATE BUFFER/LATCH
Datasheet	MC6882A-Motorola.pdf

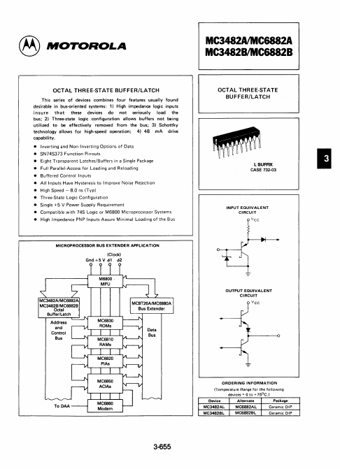

Additional preview pages of the MC6882A datasheet.

usually found desirable in bus-oriented systems: 1) High impedance logic inputs insure that these devices do not seriously load the bus; 2) Three-state logic configuration allows buffers not being utilized to be effectively removed from the bus; 3) Schottky technology allows for high-speed operation; 4) 48 mA drive capability.
Inverting and Non-Inverting Options of Data.
SN74S373 Function Pinouts.
Eight Transparent Latches/Buffers in a Single Package.
Full Pa.
