MC34261 - (MC33261 / MC34261) POWER FACTOR CONTROLLERS

Description

Most electronic ballasts and switching power supplies use a bridge rectifier and a filter capacitor to derive raw dc voltage from the utility ac line.

This simple rectifying circuit draws power from the line when the instantaneous ac voltage exceeds the capacitor’s voltage.

Features

  • consisting of input undervoltage lockout with hysteresis, cycle.
  • by.
  • cycle current limiting, and a latch for single pulse metering. These devices are available in dual.
  • in.
  • line and surface mount plastic packages.
  • Internal Startup Timer MC34261 MC33261 POWER FACTOR.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MC34261 Power Factor Controllers ON Semiconductor
MC34262 POWER FACTOR CONTROLLERS UTC
MC34262 Power Factor Controllers ON Semiconductor
MC34268 SCSI-2 Active Terminator Regulator ON Semiconductor
MC3423 Overvoltage Crowbar Sensing Circuit ON Semiconductor

Other Datasheets by Motorola Semiconductor (now NXP Semiconductors)

Part Number Description
MC34262 (MC33262 / MC34262) POWER FACTOR CONTROLLERS
MC3420 (MC3420 / MC3520) SWITCHMODE REGULATOR CONTROL CIRCUIT
MC34216 PROGRAMMABLE TELEPHONE LINE INTERFACE CIRCUIT WITH LOUDSPEAKER AMPLIFIER
MC34216A PROGRAMMABLE TELEPHONE LINE INTERFACE CIRCUIT WITH LOUDSPEAKER AMPLIFIER
MC34217 Telephone tone ringer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

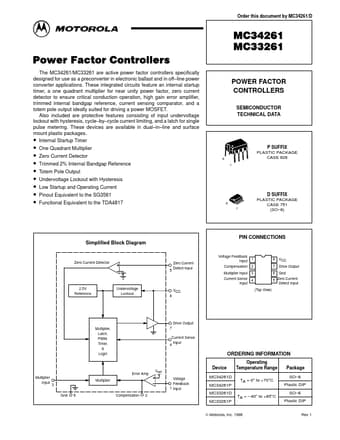

Order this document by MC34261/D Power Factor Controllers The MC34261/MC33261 are active power factor controllers specifically designed for use as a preconverter in electronic ballast and in off–line power converter applications. These integrated circuits feature an internal startup timer, a one quadrant multiplier for near unity power factor, zero current detector to ensure critical conduction operation, high gain error amplifier, trimmed internal bandgap reference, current sensing comparator, and a totem pole output ideally suited for driving a power MOSFET. Also included are protective features consisting of input undervoltage lockout with hysteresis, cycle–by–cycle current limiting, and a latch for single pulse metering.
