MC34166 - POWER SWITCHING REGULATORS

Description

of each section of the device is given below with the representative block diagram shown in Figure 13.

Oscillator The oscillator frequency is internally programmed to 72 kHz by capacitor CT and a trimmed current source.

Features

  • consist of cycle.
  • by.
  • cycle current limiting, undervoltage lockout, and thermal shutdown. Also included is a low power standby mode that reduces power supply current to 36 µA.
  • Output Switch Current in Excess of 3.0 A MC34166 MC33166 POWER.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MC34166 Step-Up/Down/Inverting Switching Regulators ON Semiconductor
MC3416 3-Axis Accelerometer mCube
MC3416 3-Axis Accelerometer MEMSIC
MC34160 5.0V Voltage Regulator and Supervisory Circuit ON Semiconductor
MC34161 Universal Voltage Monitors ON Semiconductor

Other Datasheets by Motorola Semiconductor (now NXP Semiconductors)

Part Number Description
MC34160 MICROPROCESSOR VOLTAGE REGULATOR/ SUPERVISORY CIRCUIT
MC34161 UNIVERSAL VOLTAGE MONITORS
MC34163 POWER SWITCHING REGULATORS
MC34164 MICROPOWER UNDERVOLTAGE SENSING CIRCUITS
MC34167 POWER SWITCHING REGULATORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

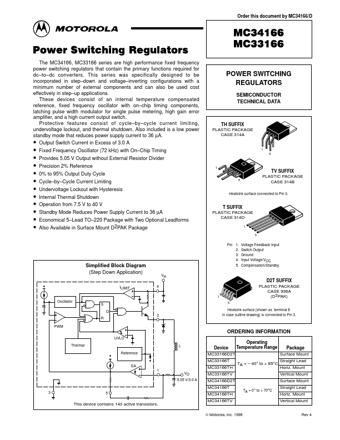

Order this document by MC34166/D Power Switching Regulators The MC34166, MC33166 series are high performance fixed frequency power switching regulators that contain the primary functions required for dc–to–dc converters. This series was specifically designed to be incorporated in step–down and voltage–inverting configurations with a minimum number of external components and can also be used cost effectively in step–up applications. These devices consist of an internal temperature compensated reference, fixed frequency oscillator with on–chip timing components, latching pulse width modulator for single pulse metering, high gain error amplifier, and a high current output switch. Protective features consist of cycle–by–cycle current limiting, undervoltage lockout, and thermal shutdown.
