MC33897B, MC33897 - Single Wire CAN Transceiver

Motorola

The MC33897B by Motorola is a Single Wire CAN Transceiver. Below is the official datasheet preview.

📥 Download Datasheet

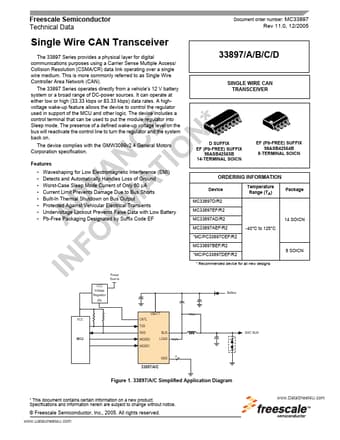

MC33897B Single Wire CAN Transceiver by Motorola - Datasheet Preview — Official preview page of the **MC33897B** Single Wire CAN Transceiver datasheet (Motorola).

Datasheet Details

Part number	MC33897B, MC33897
Manufacturer	Motorola
File Size	390.54 KB
Description	Single Wire CAN Transceiver
Datasheet	MC33897_Motorola.pdf
Note	This datasheet PDF includes multiple part numbers: MC33897B, MC33897. Please refer to the document for exact specifications by model.
Additional preview pages of the MC33897B datasheet.

MC33897B Product details

Description

of each terminal can be found in the Functional Terminal Description section, begining on page 12. Terminal Name GND TXD MODE0, MODE1 RXD NC Formal Name Ground Transmit Data Mode Control Receive Data No Connect Definition Electrical Common Ground and Heat removal.

Features

Waveshaping for Low Electromagnetic Interference (EMI) Detects and Automatically Handles Loss of Ground Worst-Case Sleep Mode Current of Only 60 µA Current Limit Prevents Damage Due to Bus Shorts Built-In Thermal Shutdown on Bus Output Protected Against Vehicular Electrical Transients Undervoltage Lockout Prevents False Data with Low Battery Pb-Free Packaging Designated by Suffix Code EF 33897/A/B/C/D SINGLE WIRE CA.
