MC33286 - Automotive Dual High Side Driver

Motorola

The MC33286 by Motorola is a Automotive Dual High Side Driver. Below is the official datasheet preview.

📥 Download Datasheet

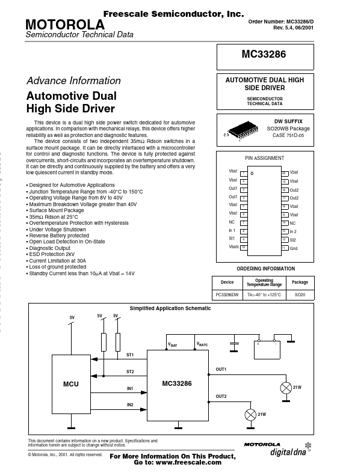

MC33286 Automotive Dual High Side Driver by Motorola - Datasheet Preview — Official preview page of the **MC33286** Automotive Dual High Side Driver datasheet (Motorola).

Datasheet Details

Part number	MC33286
Manufacturer	Motorola
File Size	320.63 KB
Description	Automotive Dual High Side Driver
Datasheet	MC33286_Motorola.pdf
Additional preview pages of the MC33286 datasheet.

MC33286 Product details

Description

Operating Voltage Under Voltage Threshold Drain-Source on Resistance Drain-Source on Resistance High Current Limitation Short-Circuit Current Limitation Body Diode Forward Voltage Body Diode Forward Voltage Hot Open Load Current Standby Current Supply Current : One Channel On Supply Current : Both Channels On Low Input Voltage High Input Voltage Input Hysteresis Input Current Status Voltage Thermal Shutdown Thermal Shutdown Hysteresis Output Maximum Positive Slew Rate Output Maximum Negative Sle

Features

The device consists of two independent 35mΩ Rdson switches in a surface mount package. It can be directly interfaced with a microcontroller for control and diagnostic functions. The device is fully protected against overcurrents, short-circuits and incorporates an overtemperature shutdown. It can be directly and continuously supplied by the battery and offers a very low quiescent current in standby mode.
Designed for Automotive.
