MC33197 - AUTOMOTIVE WASH WIPER TIMER

Features

  • ill be taken. After a time T1; the circuit will perform as shown on Figure 3. The output will turn on and remain on for the duration of W/W. When W/W becomes inactive, the output will remain on for T2 = 96 x 4 x tb1. Figure 3. Switching Wavefo.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MC33198 HIGH-SIDE TMOS DRIVER NXP
MC3310 Motion Processor ETC
MC33151 High Speed Dual MOSFET Drivers ON Semiconductor
MC33152 HIGH SPEED DUAL MOSFET DRIVERS ON Semiconductor
MC33153 Single IGBT Gate Driver ON Semiconductor

Other Datasheets by Motorola Semiconductor (now NXP Semiconductors)

Part Number Description
MC33197A AUTOMOTIVE WASH WIPER TIMER
MC33192 MI-BUS INTERFACE STEPPER MOTOR CONTROLLER
MC33193 AUTOMOTIVE DIRECTION INDICATOR
MC33195 Standard Quad Low Side Pre-driver with Diagnostic
MC33198 Automotive High Side TMOS Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

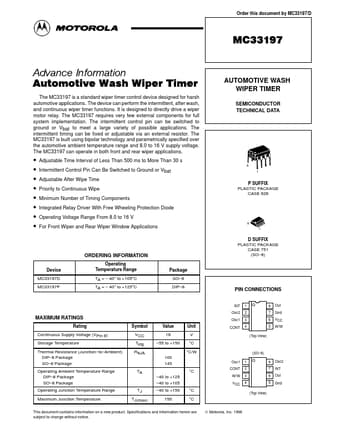

Order this document by MC33197/D MC33197 Advance Information Automotive Wash Wiper Timer The MC33197 is a standard wiper timer control device designed for harsh automotive applications. The device can perform the intermittent, after wash, and continuous wiper timer functions. It is designed to directly drive a wiper motor relay. The MC33197 requires very few external components for full system implementation. The intermittent control pin can be switched to ground or Vbat to meet a large variety of possible applications. The intermittent timing can be fixed or adjustable via an external resistor. The MC33197 is built using bipolar technology and parametrically specified over the automotive ambient temperature range and 8.0 to 16 V supply voltage.
