MC33161 - UNIVERSAL VOLTAGE MONITORS

Description

Introduction To be competitive in today’s electronic equipment market, new circuits must be designed to increase system reliability with minimal incremental cost.

Features

  • ce consists of two comparator channels each with hysteresis, a mode select input for channel programming, a pinned out reference, and two open collector outputs. Each comparator channel can be configured as either inverting or noninverting by the Mode Select input. This allows a single device to perform over, under, and window detectio.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MC33161 Universal Voltage Monitors ON Semiconductor
MC33160 5.0V Voltage Regulator and Supervisory Circuit ON Semiconductor
MC33163 Step-Up/Down/Inverting Switching Regulators ON Semiconductor
MC33164 5V UNDERVOLTAGE SENSING CIRCUIT Microsemi
MC33164 Micropower Undervoltage Sensing Circuits ON Semiconductor

Other Datasheets by Motorola Semiconductor (now NXP Semiconductors)

Part Number Description
MC33160 MICROPROCESSOR VOLTAGE REGULATOR/ SUPERVISORY CIRCUIT
MC33163 POWER SWITCHING REGULATORS
MC33164 MICROPOWER UNDERVOLTAGE SENSING CIRCUITS
MC33166 POWER SWITCHING REGULATORS
MC33167 POWER SWITCHING REGULATORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

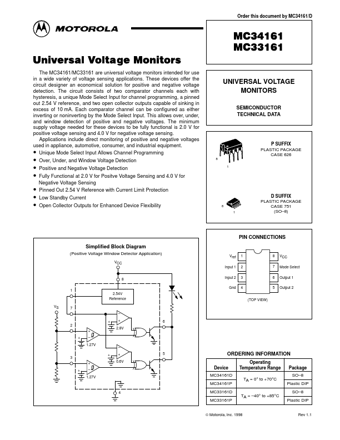

Order this document by MC34161/D Universal Voltage Monitors The MC34161/MC33161 are universal voltage monitors intended for use in a wide variety of voltage sensing applications. These devices offer the circuit designer an economical solution for positive and negative voltage detection. The circuit consists of two comparator channels each with hysteresis, a unique Mode Select Input for channel programming, a pinned out 2.54 V reference, and two open collector outputs capable of sinking in excess of 10 mA. Each comparator channel can be configured as either inverting or noninverting by the Mode Select Input. This allows over, under, and window detection of positive and negative voltages. The minimum supply voltage needed for these devices to be fully functional is 2.
