MC145405, MC145403 - DRIVER/RECEIVERS

Motorola

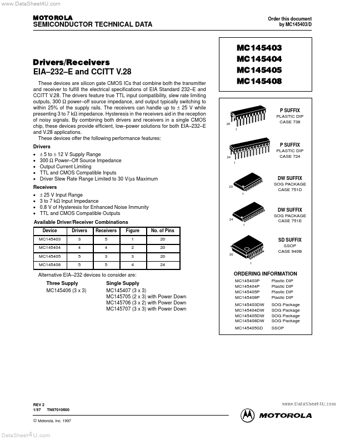

The MC145405 by Motorola is a DRIVER/RECEIVERS. Below is the official datasheet preview.

📥 Download Datasheet

MC145405 DRIVER/RECEIVERS by Motorola - Datasheet Preview — Official preview page of the **MC145405** DRIVER/RECEIVERS datasheet (Motorola).

Datasheet Details

Part number	MC145405, MC145403
Manufacturer	Motorola
File Size	266.37 KB
Description	DRIVER/RECEIVERS
Datasheet	MC145403_Motorola.pdf
Note	This datasheet PDF includes multiple part numbers: MC145405, MC145403. Please refer to the document for exact specifications by model.
Additional preview pages of the MC145405 datasheet.

MC145405 Product details

Description

VCC Digital Power Supply The digital supply pin, which is connected to the logic power supply (+ 5.5 V maximum). 232 E connector (Pin 7) as well as to the logic power supply ground. 5 to 12 V

Features

Drivers.
± 5 to ± 12 V Supply Range 300 Ω Power.
Off Source Impedance Output Current Limiting TTL and CMOS Compatible Inputs Driver Slew Rate Range Limited to 30 V/µs Maximum ± 25 V Input Range 3 to 7 kΩ Input Impedance 0.8 V of Hysteresis for Enhanced Noise Immunity TTL and CMOS Compatible Outputs 24 24 1 20 1 P SUFFIX.
