MC14015B Datasheet - Motorola

MC14015B Dual 4-Bit Static Shift Register

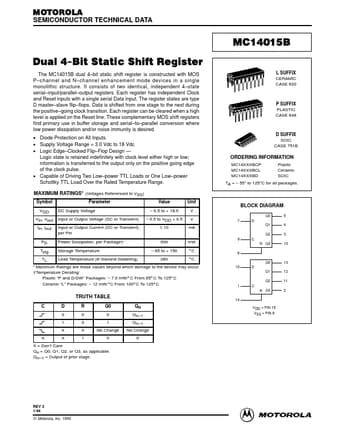

MOTOROLA SEMICONDUCTOR TECHNICAL DATA MC14015B Dual 4-Bit Static Shift Register The MC14015B dual 4 bit static shift register is constructed with MOS P channel and N channel enhancement mode devices in a single monolithic structure. It consists of two identical, independent 4 state serial input/parallel output registers. Each register has independent Clock and Reset inputs with a single serial Data input. The register states are type D master .

MC14015B Datasheet (251.10 KB)

Preview of MC14015B PDF
MC14015B Datasheet Preview Page 2 MC14015B Datasheet Preview Page 3

Datasheet Details

Part number:

MC14015B

Manufacturer:

Motorola

File Size:

251.10 KB

Description:

Dual 4-bit static shift register.
