MC10173 - Quad 2-Input Multiplexer / Latch

Download the MC10173 datasheet PDF. This datasheet also covers the MC10173L variant, as both devices belong to the same quad 2-input multiplexer / latch family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MC10173L_MotorolaInc.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MC10173 Quad 2-Input Multiplexer/Latch ON Semiconductor
MC10171 Dual Binary to 1-4 Decoder(Low) ON Semiconductor
MC10174 Dual 4 to 1 Multiplexer ON Semiconductor
MC10175 Quint Latch ON Semiconductor
MC10176 Hex D Master/Slave Flip-Flop ON Semiconductor

Other Datasheets by Motorola Semiconductor (now NXP Semiconductors)

Part Number Description
MC10170 9+2-Bit Parity Generator/Checker
MC10171 Dual Binary to 1-4 Decoder
MC10172 Dual Binary to 1-4 Decoder
MC10174 Dual 4 to 1 Multiplexer
MC10175 Quint Latch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

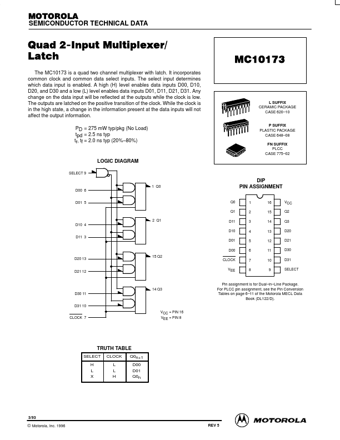

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Quad 2-Input Multiplexer/ Latch The MC10173 is a quad two channel multiplexer with latch. It incorporates common clock and common data select inputs. The select input determines which data input is enabled. A high (H) level enables data inputs D00, D10, D20, and D30 and a low (L) level enables data inputs D01, D11, D21, D31. Any change on the data input will be reflected at the outputs while the clock is low. The outputs are latched on the positive transition of the clock. While the clock is in the high state, a change in the information present at the data inputs will not affect the output information. PD = 275 mW typ/pkg (No Load) tpd = 2.5 ns typ tr, tf = 2.
