MBR340M - SCHOTTKY BARRIER RECTIFIERS

Download the MBR340M datasheet PDF. This datasheet also covers the MBR320M variant, as both devices belong to the same schottky barrier rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • epitaxial construction with oxide passivation and metal overlap contact. Ideally suited for use as rectifiers in low-voltage, high-frequency inverters, free wheeling diodes, and polarity protection diodes.
  • Extremelv Low vF.
  • Low Stored Charge, Majority Carrier Conduction.
  • Low Power Loss/High Efficiency.
  • High Surge Capacity II.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MBR320M-Motorola.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MBR340 SCHOTTKY BARRIER DIODE JILIN SINO
MBR340 SCHOTTKY RECTIFIER International Rectifier
MBR340 Axial Lead Rectifier ON Semiconductor
MBR340 Schottky Barrier Rectifier Kexin
MBR340 3 AMP SCHOTTKY RECTIFIERS Digitron Semiconductors

Other Datasheets by Motorola Semiconductor (now NXP Semiconductors)

Part Number Description
MBR340 Axial Lead Rectifiers
MBR3045ST SWITCHMODE Power Rectifier
MBR3100 Axial Lead Rectifiers
MBR320 Axial Lead Rectifiers
MBR320M SCHOTTKY BARRIER RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

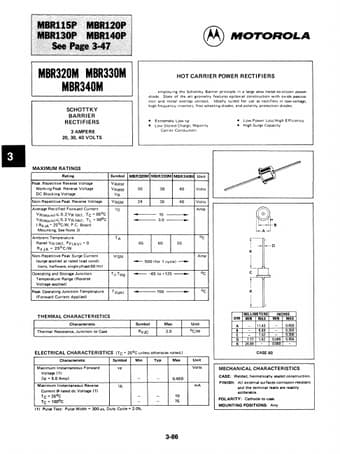

® MOTOROLA MBR320M MBR330M MBR340M SCHOTTKY BARRIER RECTIFIERS 3 AMPERE 20, 30, 40 VOLTS HOT CARRIER POWER RECTIFIERS . employing the Schottky Barrier principle in a large area metal-ta-silicon power diode. State of the art geometry features epitaxial construction with oxide passivation and metal overlap contact. Ideally suited for use as rectifiers in low-voltage, high-frequency inverters, free wheeling diodes, and polarity protection diodes.
