MBR2535CTL - SWITCHMODE Power Rectifier

Features

  • epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for use in low voltage, high frequency switching power supplies, free wheeling diodes, and polarity protection diodes.
  • Very Low Forward Voltage (0.55 V Maximum @ 25 Amps).
  • Matched Dual Die Construction (12.5 A per Leg or 25 A per Package).
  • Guardring for Stress Protection.
  • Highly Stable Oxide Passivated Junction (125°C Operating Junction Temperature).
  • Epoxy Meets U.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MBR2535CTL SWITCHMODE Power Rectifier ON Semiconductor
MBR2535CT Low IRRM Schottky Barrier Diodes Sirectifier
MBR2535CT SCHOTTKY RECTIFIER Sangdest Microelectronics
MBR2535CT SCHOTTKY BARRIER RECTIFIERS LITE-ON
MBR2535CT SCHOTTKY RECTIFIER International Rectifier

Other Datasheets by Motorola Semiconductor (now NXP Semiconductors)

Part Number Description
MBR2535CT SWITCHMODE Power Rectifiers
MBR2535 SWITCHMODE Power Rectifiers
MBR2530 SCHOTTKY BARRIER RECTIFIERS
MBR2515L SWITCHMODE Power Rectifier
MBR2520 SCHOTTKY BARRIER RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

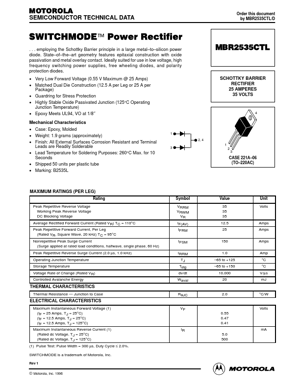

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MBR2535CTL/D SWITCHMODE™ Power Rectifier . . . employing the Schottky Barrier principle in a large metal–to–silicon power diode. State–of–the–art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for use in low voltage, high frequency switching power supplies, free wheeling diodes, and polarity protection diodes. • Very Low Forward Voltage (0.55 V Maximum @ 25 Amps) • Matched Dual Die Construction (12.5 A per Leg or 25 A per Package) • Guardring for Stress Protection • Highly Stable Oxide Passivated Junction (125°C Operating Junction Temperature) • Epoxy Meets UL94, VO at 1/8″ Mechanical Characteristics • Case: Epoxy, Molded • Weight: 1.
