BCX52 - Transistor

Download the BCX52 datasheet PDF. This datasheet also covers the BCX51 variant, as both devices belong to the same transistor family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BCX51-Motorola.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BCX52 PNP Medium Power Transistor Multicomp
BCX52 PNP Silicon AF Transistors Bruckewell
BCX52 PNP medium power transistors NXP
BCX52 SURFACE MOUNT PNP SILICON TRANSISTOR Central Semiconductor Corp
BCX52 PNP Silicon AF Transistors Infineon Technologies AG

Other Datasheets by Motorola Semiconductor (now NXP Semiconductors)

Part Number Description
BCX50 HIGH CURRENT TRANSISTORS
BCX51 Transistor
BCX53 Transistor
BCX54 Transistor
BCX55 Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

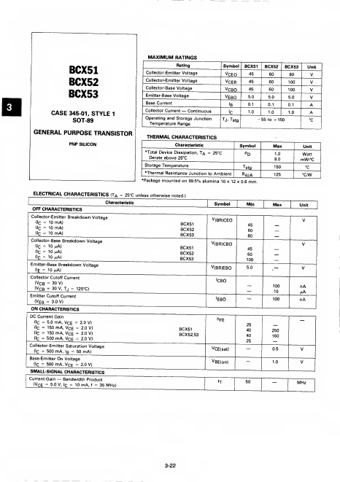

BCX51 BCX52 BCX53 CASE 345-01, STYLE 1 SOT-89 GENERAL PURPOSE TRANSISTOR PNP SILICON MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Base Current —Collector Current Continuous Operating and Storage Junction Temperature Range Symbol vCEO VCER vCBO vEBO IB 'C TJ- Tstg BCX51 BCX52 BCX53 45 60 80 45 60 100 45 60 100 5.0 5.0 5.0 0.1 0.1 0.1 1.0 1.0 1.0 -55 to +150 Unit V V V V A A °C THERMAL CHARACTERISTICS Characteristic *Total Device Dissipation, TA = 25°C Derate above 25°C Symbol PD Storage Temperature Tstg •Thermal Resistance Junction to Ambient R0JA mm•Package mounted on 99.5% alumina 10 x 12 x 0.6 Max 1.0 8.0 150 125 Unit Watt mW/°C °C °C/W ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted.
