BCX47 Datasheet - Motorola

BCX47 HIGH CURRENT TRANSISTORS

MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous @Total Device Dissipation Ta = 25°C Derate above 25°C Total Device Dissipation @Tc = 25°C Derate above 25°C Operating and Storage Junction Temperature Range THERMAL CHARACTERISTICS Characteristic Thermal Resistance, Junction to Case Thermal Resistance, Junction to Ambient Symbol VCEO VCBO VEBO ic PD pd Tj, T stg Symbol R«JC R^jc BCX BCX BCX 45 47 49 45 60 80 45 60 80 5.0 .

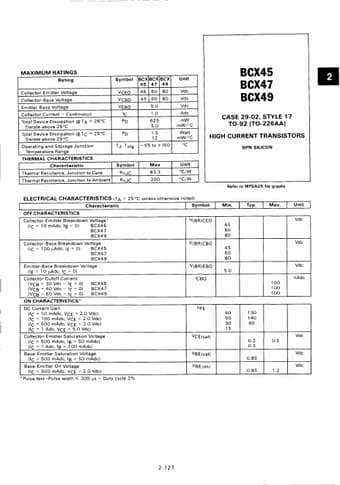

BCX47 Datasheet (62.43 KB)

Preview of BCX47 PDF
BCX47 Datasheet Preview Page 2

Datasheet Details

Part number:

BCX47

Manufacturer:

Motorola

File Size:

62.43 KB

Description:

High current transistors.
