2N2212 PNP GERMANIUM POWER TRANSISTORS

2N2212 Description

2N2212 (GERMANIUM) PNP GERMANIUM POWER TRANSISTORS * ..designed for high-current SllVitching applications requiring low saturation voltages.sho.

2N2212 Applications

* requiring low saturation voltages. short SllVitching times and good collector-emitter sustaining capability.
* Alloy-Diffused Epitaxial Construction
* Low Saturation Voltage- VCE(SAT) = 0_5 Vdc (Max) @IC = 5.0 Adc 10 AMPERE PNP ADE GERMANIUM POWER TRANSISTORS 120 VOLTS 102 WATTS MA

📥 Download Datasheet

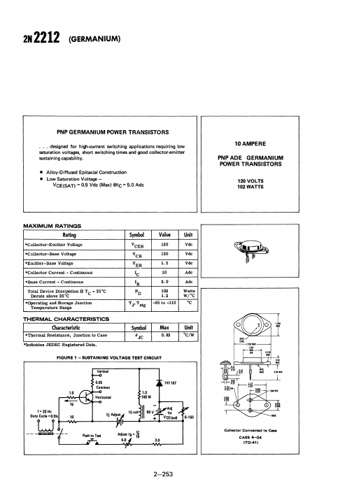

Preview of 2N2212 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2N2212
Manufacturer
Motorola
File Size
104.96 KB
Datasheet
2N2212-Motorola.pdf
Description
PNP GERMANIUM POWER TRANSISTORS
