1708 2N
(SILICON)
CASE 26
(TO-.oI6)
Collector electrically connected to case
NPN silicon transistor designed for very highspeed, low-power saturated switching applications for computers in military and industrial service.
MAXIMUM RATINGS
Rating
Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Total Device Dissipation @ TA = 25"C
Derate above 25°C Total Device Dissipation @ TC = 25°C
Derate above 25°C Operating Junction Temperature Storage Temperature Range
Symbol
VCEO VCB VEB IC PD
PD
TJ Tstg
Value
12 25 3.0 200 300 2.0 1.0 6.67 +175 -65 to +200
Unit
Vdc Vdc Vdc mAdc mW mW/oC Watt mW/oC "C °C

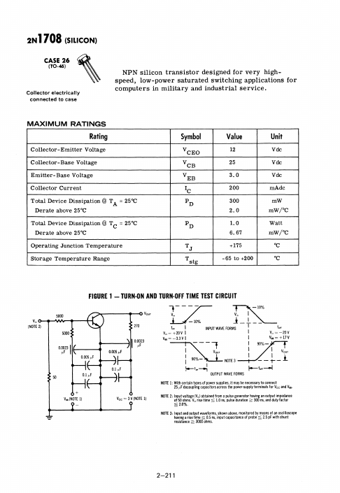

r -z-- - FIGURE 1- TURN·ON AND TURN·OFF TIME TEST CIRCUIT
5000
r::>.,----p--o Your
V"o-_J,iIN-....
2N1708 Datasheet
