1N5365B - Silicon Zener Diode

Download the 1N5365B datasheet PDF. This datasheet also covers the 1N5333B variant, as both devices belong to the same silicon zener diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • Up to 180 Watt Surge Rating @ 8.3 ms.
  • Maximum Limits Guaranteed on Seven Electrical Parameters Mechanical Characteristics: CASE: Void-free, transfer-molded, thermosetting plastic FINISH: All external surfaces are corrosion resistant and leads are readily solderable.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N5333B-Motorola.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
1N5365B ZENER DIODE GME
1N5365B 5.0W ZENER DIODE WON-TOP
1N5365B Zener Diode NTE
1N5365B Silicon 5 Watt Zener Diodes Microsemi
1N5365B 5W ZENER DIODE Diodes Incorporated

Other Datasheets by Motorola Semiconductor (now NXP Semiconductors)

Part Number Description
1N5365 5.OWATT SURMETIC 40 SILICON ZENER DIODES
1N5360 5.OWATT SURMETIC 40 SILICON ZENER DIODES
1N5360B Silicon Zener Diode
1N5361 5.OWATT SURMETIC 40 SILICON ZENER DIODES
1N5361 5.OWATT SURMETIC 40 SILICON ZENER DIODES

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

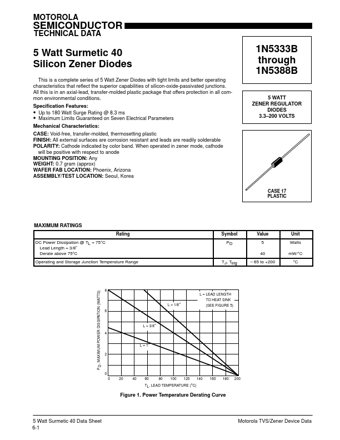

MOTOROLA SEMICONDUCTOR TECHNICAL DATA 5 Watt Surmetic 40 Silicon Zener Diodes This is a complete series of 5 Watt Zener Diodes with tight limits and better operating characteristics that reflect the superior capabilities of silicon-oxide-passivated junctions. All this is in an axial-lead, transfer-molded plastic package that offers protection in all common environmental conditions. Specification Features: • Up to 180 Watt Surge Rating @ 8.3 ms • Maximum Limits Guaranteed on Seven Electrical Parameters Mechanical Characteristics: CASE: Void-free, transfer-molded, thermosetting plastic FINISH: All external surfaces are corrosion resistant and leads are readily solderable POLARITY: Cathode indicated by color band.
