MC56F8365 - 16-Bit Digital Signal Controllers

Motorola Semiconductor

📥 Download Datasheet

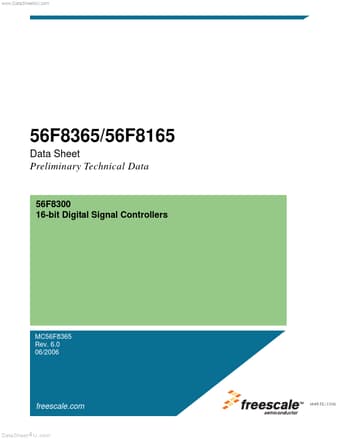

MC56F8365 Datasheet Preview — Preview of MC56F8365 PDF

Datasheet Details

Part number	MC56F8365
Manufacturer	Motorola Semiconductor
File Size	2.78 MB
Description	16-Bit Digital Signal Controllers
Datasheet	MC56F8365_MotorolaSemiconductor.pdf

MC56F8365 Product details

Description

of Change Rev 3.0 Rev 4.0 Rev 5.0 Rev 6.0 Please see http://www.freescale.com for the most current Data Sheet revision.56F8365 Technical Data, Rev.6.0 2 Freescale Semiconductor Preliminary DataSheet 4 U .com www.DataSheet4U.com 56F8365/56F8165 General Description Note:

Features

in italics are NOT available in the 56F8165 device.
Up to 60 MIPS at 60MHz core frequency.
DSP and MCU functionality in a unified, C-efficient architecture.
512KB Program Flash.
4KB Program RAM.
32KB Data Flash.
32KB Data RAM.
32KB Boot Flash.
Up to two 6-channel PWM modules.
Four 4-channel, 12-bit ADCs.
Temperature Sensor.
Up to two Quadrature Decoders.
Up to two FlexCAN modules.
