PHPM6B15E60D3 Datasheet (Motorola Inc)

PHPM6B15E60D3, Hybrid Power Module

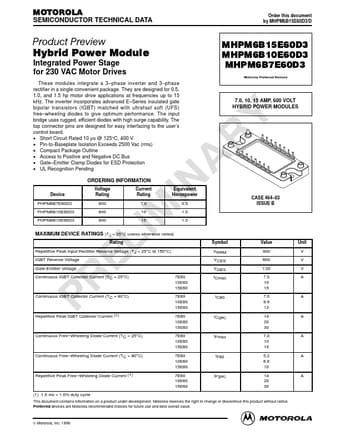

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MHPM6B15E60D3/D Product Preview Hybrid Power Module Integrated Power Stage for 230 VAC Motor Drives These modules integrate a 3 phase inverter and 3 phase rectifier in a single convenient package.

They are designed for 0.5, 1.0, and 1.5 hp motor drive applications at frequencies up to 15 kHz.

The inverter incorporates advanced E Series insulated gate bipolar transistors (IGBT) matched with ultrafast soft (UF
