BZX84C22LT1 225 mW SOT-23 Zener Voltage Regulator Diodes

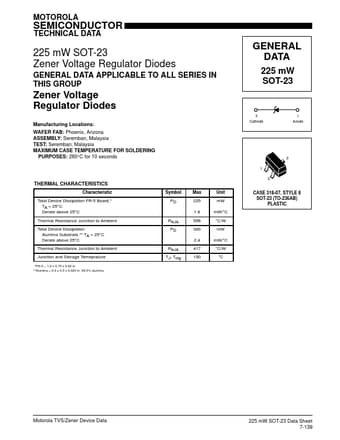

MOTOROLA SEMICONDUCTOR TECHNICAL DATA 225 mW SOT-23 Zener Voltage Regulator Diodes GENERAL DATA APPLICABLE TO ALL SERIES IN THIS GROUP GENERAL DATA 225 mW SOT-23 Zener Voltage Regulator Diodes Manufacturing Locations: WAFER FAB: Phoenix, Arizona ASSEMBLY: Seremban, Malaysia TEST: Seremban, Malaysia MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES: 260°C for 10 seconds 1 2 3 Cathode 1 Anode 3 THERMAL CHARACTERISTICS Characteristic Total Device Dissipation FR-5 Board, TA = 25°C Derate .

BZX84C22LT1 Features

* VR V 1 1 1 1 1 1 1 1 1 2 2 3 3.5 4 5 6 6.5 6.5 7 8 8.4 9.1 9.9 10 11 12 13 14 14 15 17 18 19 21 21 23 25 27 30 33 36 39 43
