uld be to use a ceramic substrate or an aluminum core board such as Thermal Clad™. Using a board material such as Thermal Clad, an aluminum core board, the power dissipation can be doubled using the same footprint. Motorola Small.
Signal Transistors, FETs and Diodes Device Data
5
BC846AWT1,BWT1 BC847AWT1,BWT1,CWT1 BC848AWT1,BWT1,CWT1.
The following content is an automatically extracted verbatim text
from the original manufacturer datasheet and is provided for reference purposes only.
View original datasheet text
MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document by BC846AWT1/D

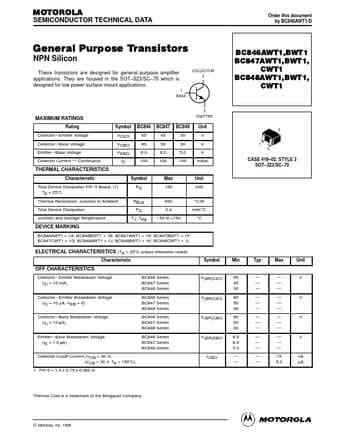

General Purpose Transistors
NPN Silicon
These transistors are designed for general purpose amplifier applications. They are housed in the SOT–323/SC–70 which is designed for low power surface mount applications.
1 BASE 2 EMITTER Symbol VCEO VCBO VEBO IC BC846 65 80 6.0 100 BC847 45 50 6.0 100 BC848 30 30 5.
