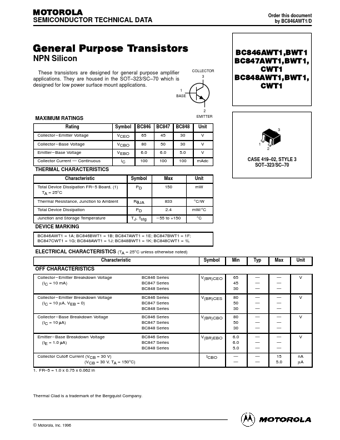

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by BC846AWT1/D General Purpose Transistors NPN Silicon These transistors are designed for general purpose amplifier applications. They are housed in the SOT 323/SC 70 which is designed for low power surface mount applications. 1 BASE 2 EMITTER Symbol VCEO VCBO VEBO IC BC846 65 80 6.0 100 BC847 45 50 6.0 100 BC848 30 30 5.0 100 Unit V V V mAdc COLLECTOR 3 BC846AWT1,BWT1 BC847AWT1,BWT1, CWT1 BC848AWT1,BWT1, CWT1 MAXIMU.

BC847AWT1 Features

* uld be to use a ceramic substrate or an aluminum core board such as Thermal Clad™. Using a board material such as Thermal Clad, an aluminum core board, the power dissipation can be doubled using the same footprint. Motorola Small

* Signal Transistors, FETs and Diodes Device Data 5 BC846AWT1
