1PMT5921BT3 - PLASTIC SURFACE MOUNT ZENER DIODES 2.5 WATTS 3.3.91 VOLTS

Download the 1PMT5921BT3 datasheet PDF. This datasheet also covers the 1PM variant, as both devices belong to the same plastic surface mount zener diodes 2.5 watts 3.3.91 volts family and are provided as variant models within a single manufacturer datasheet.

Features

  • Voltage Range.
  • 3.3 to 91 V.
  • ESD Rating of Class 3 (> 16 kV) per Human Body Model.
  • Low Profile.
  • maximum height of 1.1mm.
  • Integral Heat Sink/Locking Tabs.
  • Full metallic bottom eliminates flux entrapment.
  • Small Footprint.
  • Footprint area of 8.45mm2.
  • Supplied in 12mm tape and reel.
  • 12,000 units per reel.
  • Powermite is JEDEC Registered as DO.
  • 216AA 1 1PMT5913BT3 through 1PMT5948BT3 PLA.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1PM-T5913.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
1PMT5921B 3.0 WATT Zener Diodes Microsemi
1PMT5920B (1PMT59xxB) Plastic Surface Mount POWERMITE Package ON Semiconductor
1PMT5920B 3.0 WATT Zener Diodes Microsemi
1PMT5922B 3.0 WATT Zener Diodes Microsemi
1PMT5923B 3.0 WATT Zener Diodes Microsemi

Other Datasheets by Motorola Semiconductor (now NXP Semiconductors)

Part Number Description
1PMT5920BT3 PLASTIC SURFACE MOUNT ZENER DIODES 2.5 WATTS 3.3.91 VOLTS
1PMT5922BT3 PLASTIC SURFACE MOUNT ZENER DIODES 2.5 WATTS 3.3.91 VOLTS
1PMT5923BT3 PLASTIC SURFACE MOUNT ZENER DIODES 2.5 WATTS 3.3.91 VOLTS
1PMT5924BT3 PLASTIC SURFACE MOUNT ZENER DIODES 2.5 WATTS 3.3.91 VOLTS
1PMT5925BT3 PLASTIC SURFACE MOUNT ZENER DIODES 2.5 WATTS 3.3.91 VOLTS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

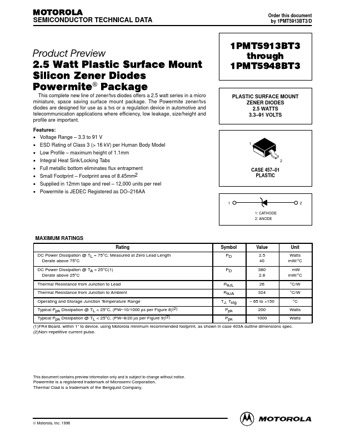

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by 1PMT5913BT3/D Product Preview 2.5 Watt Plastic Surface Mount Silicon Zener Diodes Powermite® Package This complete new line of zener/tvs diodes offers a 2.5 watt series in a micro miniature, space saving surface mount package. The Powermite zener/tvs diodes are designed for use as a tvs or a regulation device in automotive and telecommunication applications where efficiency, low leakage, size/height and profile are important. Features: • Voltage Range – 3.3 to 91 V • ESD Rating of Class 3 (> 16 kV) per Human Body Model • Low Profile – maximum height of 1.1mm • Integral Heat Sink/Locking Tabs • Full metallic bottom eliminates flux entrapment • Small Footprint – Footprint area of 8.
