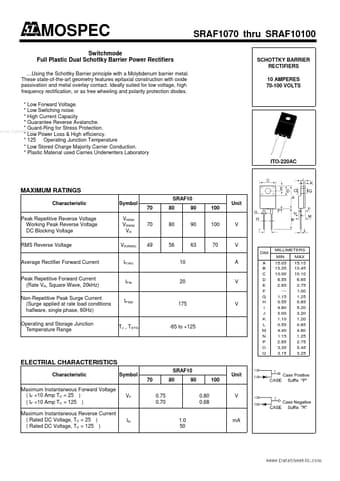

SRAF10100, SRAF1070 - (SRAF1070 - SRAF10100) Switchmode Full Plastic Dual Schottky Barrier Power Rectifiers

Mospec Semiconductor

Datasheet Details

Part number	SRAF10100, SRAF1070
Manufacturer	Mospec Semiconductor
File Size	184.45 KB
Description	(SRAF1070 - SRAF10100) Switchmode Full Plastic Dual Schottky Barrier Power Rectifiers
Datasheet	SRAF1070_MospecSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: SRAF10100, SRAF1070. Please refer to the document for exact specifications by model.

epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes.
Low Forward Voltage.
Low Switching noise.
High Current Capacity.
Guarantee Reverse Avalanche.
Guard-Ring for Stress Protection. www. DataSheet4U. com.
Low Power Loss & High efficiency.
125¢J Operating Junction Temperature.
Low Stored Charge Majority Carrier Conduction.
