V43658R04VXTG-75PC - 3.3 VOLT 8M x 64 UNBUFFERED SDRAM MODULE

General Description

The V43658R04V memory module is organized 8,388,608 x 64 bits in a 168 pin dual in line memory module (DIMM).

The 8M x 64 memory module uses 4 Mosel-Vitelic 8M x 16 SDRAM.

Key Features

  • 168 Pin Unbuffered 8,388,608 x 64 bit Oganization SDRAM DIMM.
  • Utilizes High Performance 128 Mbit, 8M x 16 SDRAM in TSOPII-54 Packages.
  • Fully PC Board Layout Compatible to INTEL’S Rev 1.0 Module Specification.
  • Single +3.3V (± 0.3V) Power Supply.
  • Programmable CAS Latency, Burst Length, and Wrap Sequence (Sequential & Interleave).
  • Auto Refresh (CBR) and Self Refresh.
  • All Inputs, Outputs are LVTTL Compatible.
  • 4096 Refresh Cycles every 64 ms.
  • Serial Prese.

📥 Download Datasheet

Datasheet Details

Part number V43658R04VXTG-75PC
Manufacturer Mosel Vitelic Corp
File Size 207.71 KB
Description 3.3 VOLT 8M x 64 UNBUFFERED SDRAM MODULE
Datasheet download datasheet V43658R04VXTG-75PC Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
V43644Y04VTG-10PC SDRAM UNBUFFERED SODIMM Mosel Vitelic
V430CH8 Metal-Oxide Varistors Littelfuse
V430MA3A Metal-Oxide Varistors Littelfuse
V430MA3A Varistor Products Littelfuse
V430MA7B Metal-Oxide Varistors Littelfuse

Other Datasheets by Mosel Vitelic Corp

Part Number Description
V43658R04VXTG-75 3.3 VOLT 8M x 64 UNBUFFERED SDRAM MODULE
V43658R04VXTG-10PC 3.3 VOLT 8M x 64 UNBUFFERED SDRAM MODULE
V43658R04V 3.3 VOLT 8M x 64 UNBUFFERED SDRAM MODULE
V43658Y04VATG-10PC 3.3 VOLT 8M x 64 HIGH PERFORMANCE 100 MHZ SDRAM UNBUFFERED SODIMM
V43658Y04VATG-75 64MB 168-PIN 133 MHZ SDRAM UNBUFFERED SODIMM 3.3 VOLT/ 8M x 64

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

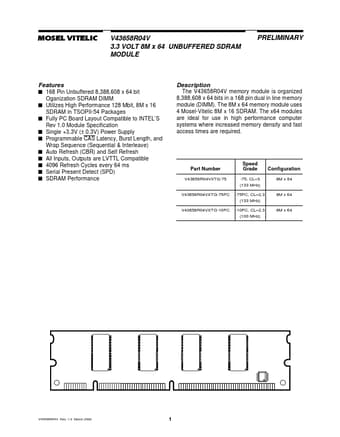

MOSEL VITELIC V43658R04V 3.3 VOLT 8M x 64 UNBUFFERED SDRAM MODULE PRELIMINARY Features ■ 168 Pin Unbuffered 8,388,608 x 64 bit Oganization SDRAM DIMM ■ Utilizes High Performance 128 Mbit, 8M x 16 SDRAM in TSOPII-54 Packages ■ Fully PC Board Layout Compatible to INTEL’S Rev 1.0 Module Specification ■ Single +3.3V (± 0.3V) Power Supply ■ Programmable CAS Latency, Burst Length, and Wrap Sequence (Sequential & Interleave) ■ Auto Refresh (CBR) and Self Refresh ■ All Inputs, Outputs are LVTTL Compatible ■ 4096 Refresh Cycles every 64 ms ■ Serial Present Detect (SPD) ■ SDRAM Performance Description The V43658R04V memory module is organized 8,388,608 x 64 bits in a 168 pin dual in line memory module (DIMM). The 8M x 64 memory module uses 4 Mosel-Vitelic 8M x 16 SDRAM.
