V436532S04VATG - 3.3 VOLT 32M x 64 HIGH PERFORMANCE PC133 UNBUFFERED SDRAM MODULE

Product Overview

Mosel Vitelic Corp

Datasheet Details

Part number	V436532S04VATG
Manufacturer	Mosel Vitelic Corp
File Size	289.71 KB
Description	3.3 VOLT 32M x 64 HIGH PERFORMANCE PC133 UNBUFFERED SDRAM MODULE
Datasheet	V436532S04VATG Datasheet

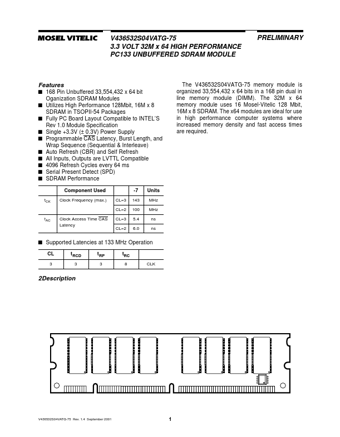

Additional preview pages of the V436532S04VATG datasheet.

Product details

Description

V436532S04VATG-75 Rev. CB1 VSS NC NC VCC WE DQM0 Pin 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 Front DQM1 CS0 DU VSS A0 A2 A4 A6 A8 A10(AP) BA1 VCC VCC CLK0 VSS DU CS2 DQM2 DQM

Features

s 168 Pin Unbuffered 33,554,432 x 64 bit Oganization SDRAM Modules s Utilizes High Performance 128Mbit, 16M x 8 SDRAM in TSOPII-54 Packages s Fully PC Board Layout Compatible to INTEL’S Rev 1.0 Module Specification s Single +3.3V (± 0.3V) Power Supply s Programmable CAS Latency, Burst Length, and Wrap Sequence (Sequential & Interleave) s Auto Refresh (CBR) and Self Refresh s All Inputs, Outputs are LVTTL Compatible s 4096 Refresh Cycles every 64 ms s Serial Present Detect (SPD) s SDRAM Performan.
