V436516Y04VATG-75PC - 128MB 144-PIN UNBUFFERED SDRAM SODIMM/ 16MX64 3.3VOLT

Product Overview

Mosel Vitelic Corp

Part number	V436516Y04VATG-75PC
Manufacturer	Mosel Vitelic Corp
File Size	307.95 KB
Description	128MB 144-PIN UNBUFFERED SDRAM SODIMM/ 16MX64 3.3VOLT
Datasheet	V436516Y04VATG-75PC Datasheet

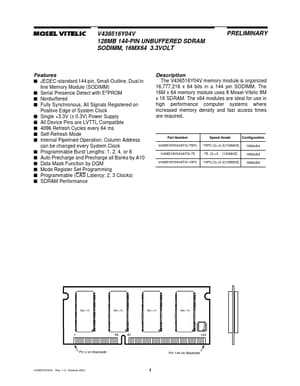

Additional preview pages of the V436516Y04VATG-75PC datasheet.

The V436516Y04V memory module is organized 16,777,216 x 64 bits in a 144 pin SODIMM.

s JEDEC-standard 144 pin, Small-Outline, Dual in line Memory Module (SODIMM) s Serial Presence Detect with E2PROM s Nonbuffered s Fully Synchronous, All Signals Registered on Positive Edge of System Clock s Single +3.3V (± 0.3V) Power Supply s All Device Pins are LVTTL Compatible s 4096 Refresh Cycles every 64 ms s Self-Refresh Mode s Internal Pipelined Operation; Column Address can be changed every System Clock s Programmable Burst Lengths: 1, 2, 4, or 8 s Auto Precharge and Precharge all Banks.
