MM1757DH, MM1757 - HD-Compatible Video Driver IC

Mitsumi

The MM1757DH by Mitsumi is a HD-Compatible Video Driver IC. Below is the official datasheet preview.

📥 Download Datasheet

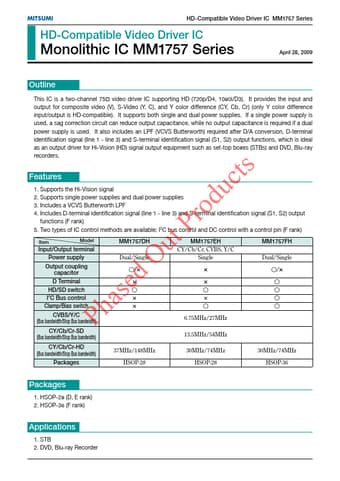

MM1757DH HD-Compatible Video Driver IC by Mitsumi - Datasheet Preview — Official preview page of the **MM1757DH** HD-Compatible Video Driver IC datasheet (Mitsumi).

Datasheet Details

Part number	MM1757DH, MM1757
Manufacturer	Mitsumi
File Size	750.17 KB
Description	HD-Compatible Video Driver IC
Datasheet	MM1757-Mitsumi.pdf
Note	This datasheet PDF includes multiple part numbers: MM1757DH, MM1757. Please refer to the document for exact specifications by model.
Additional preview pages of the MM1757DH datasheet.

MM1757DH Product details

Description

(F rank) Pin No.1 Pin name CIN Pin description Function Chroma Signal Input Pin to input chrominance signals of S-video.Bias input pin.Pin voltage: 2.5V typ.[at Single mode] Input impedance: 150kΩ typ.External circuit Chroma signal input 0.01µ Equivalent circuit diagram VCC1 Phased Out Products 150k when not using it : Open Input signal 1 Chroma signal 1V 0.3V Burst signal VEE1 Function Mute select Select mute ON/OFF with a voltage applied to this pin.Mute1 controls C/V/Y.Mu

Features

1. Supports the Hi-Vision signal 2. Supports single power supplies and dual power supplies 3. Includes a VCVS Butterworth LPF 4. Includes D-terminal identification signal (line 1 - line 3) and S-terminal identification signal (S1, S2) output functions (F rank) 5. Two types of IC control methods are available; I2C bus control and DC control with a control pin (F rank) Item Model Input/Output terminal Power supply Output coupling capacitor D Terminal HD/SD switch I2C Bus control Clamp/Bias.
