MM1215 - (MM1215 / MM1216) Low-Saturation Three-Pin Regulators

Features

  • 1. 2. 3. 4. 5. 6. Input voltage Input/output voltage difference Maximum driving current No-load input current Thermal shutdown circuit provided Output ranks 16V max. 0.2V typ. 15mA max. 250µA typ. E : 9.0V±2% I : 4.0±2% F : 6.0V±2% J : 3.0±2% G : 5.0V±2% Z : 3.3±2% H : 4.5V±2% CONT Pin Output Logic Model MM1215 MM1216 Low ON OFF High OFF ON Package SOT-25A (MM1215 N, MM1216 N) The output voltage rank appears in the boxes.

📥 Download Datasheet

Datasheet Details

Part number MM1215
Manufacturer Mitsumi Electronics
File Size 125.90 KB
Description (MM1215 / MM1216) Low-Saturation Three-Pin Regulators
Datasheet download datasheet MM1215 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MM1203 RGB Video Amplifier MITSUMI
MM1203ND RGB Video Amplifier MITSUMI
MM1207 (MM1205) 85 Mhz RGB Video Amplifier Mitsumi
MM120G3T65BM IGBT MacMic
MM1231 2-Input 1-Output 3-Circuit Video Switch Monolithic IC MITSUMI

Other Datasheets by Mitsumi Electronics

Part Number Description
MM1210 Remaining Battery Power Display
MM1214 Control of Lithium Ion Battery Charging and Discharging
MM1216 (MM1215 / MM1216) Low-Saturation Three-Pin Regulators
MM1217 Monolithic IC
MM1206 Monolithic IC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

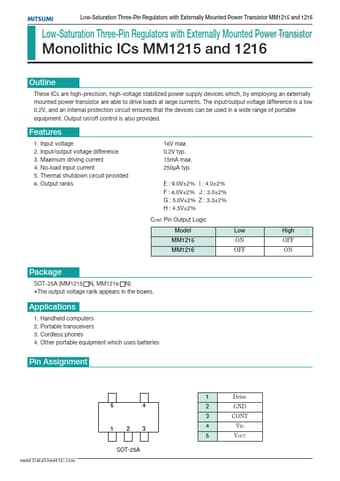

MITSUMI Low-Saturation Three-Pin Regulators with Externally Mounted Power Transistor MM1215 and 1216 Low-Saturation Three-Pin Regulators with Externally Mounted www.DataSheet4U.com Power Transistor Monolithic ICs MM1215 and 1216 Outline These ICs are high-precision, high-voltage stabilized power supply devices which, by employing an externally mounted power transistor are able to drive loads at large currents. The input/output voltage difference is a low 0.2V, and an internal protection circuit ensures that the devices can be used in a wide range of portable equipment. Output on/off control is also provided. Features 1. 2. 3. 4. 5. 6. Input voltage Input/output voltage difference Maximum driving current No-load input current Thermal shutdown circuit provided Output ranks 16V max. 0.
