M28N-1 - DC Mini-Motors

Mitsumi Electronics

M28N-1 Description

MITSUMI DC Mini-Motors M28N-1 Series DC Mini-Motors Applications 1.Printer 2.Power assistance SPECIFICATIONS SPEC-NO Items Rated Voltage (V) Vol.

M28N-1 Applications

* 1. Printer 2. Power assistance SPECIFICATIONS SPEC-NO Items Rated Voltage (V) Voltage Range (V) Rated Load (mN
* m) No Load Speed (rpm) No Load Current (mA) Starting Torque (mN
* m) Rotation R-147381 24.2 3.0~30.0 9.8 7200 70 51 CW/CCW
* Encoders available as options. CHARACTERISTICS www. Da

📥 Download Datasheet

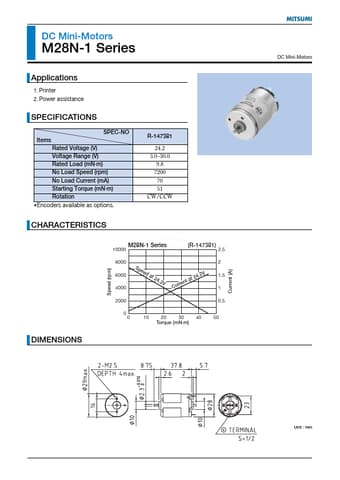

M28N-1 Datasheet Preview — Preview of M28N-1 PDF

Datasheet Details

Part number: M28N-1
Manufacturer: Mitsumi Electronics
File Size: 73.29 KB
Datasheet: M28N-1_MitsumiElectronics.pdf
Description: DC Mini-Motors
