C10-H Power Inductors

C10-H Description

MITSUMI Power Inductors C8-H, C10-H, C12-H Series OUTLINE High current and low resistance of choke coil have been lined up for note PC and amusement.

C10-H Features

* 1. Ribbon wire for low DC resistance. 2. New designed structure for high current proof. www. DataSheet4U. com 3. Small package from suitable structure using simulation. SPECIFICATIONS Type C8-H3.5R C8-H5R C10-H3.5R C10-H5R C12-H3R C12-H5R C12-H7R Size (mm) 8 8 10 10 12.5 12.5 12.5 8 8 10 10 12.5 12.5

📥 Download Datasheet

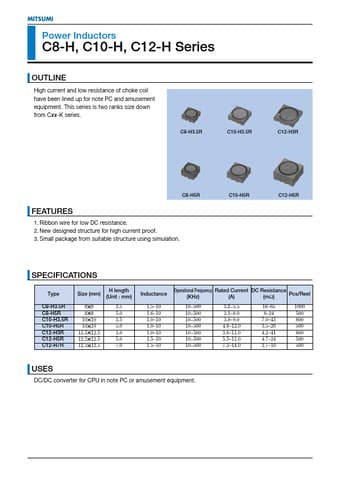

Preview of C10-H PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C10-H
Manufacturer
Mitsumi Electronics
File Size
113.96 KB
Datasheet
C10-H_MitsumiElectronics.pdf
Description
Power Inductors
