MM1623XFBE - Video Signal Driver

Name: MM1623XFBE
SKU: MM1623XFBE-509348

Mitsumi Electric

The MM1623XFBE by Mitsumi Electric is a Video Signal Driver. Below is the official datasheet preview.

Datasheet Details

Part number	MM1623XFBE
Manufacturer	Mitsumi Electric
File Size	131.85 KB
Description	Video Signal Driver
Datasheet	MM1623XFBE_MitsumiElectric.pdf
Additional preview pages of the MM1623XFBE datasheet.

Pin no.

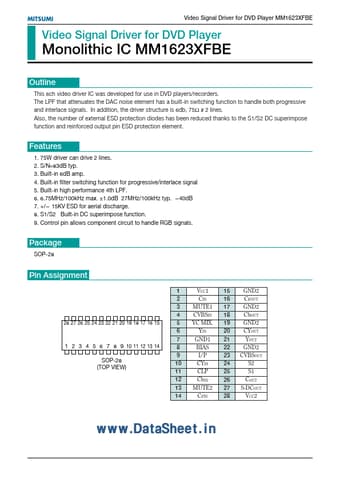

1. 75W driver can drive 2 lines. 2. S/N=83dB typ. 3. Built-in 6dB amp. 4. Built-in filter switching function for progressive/interlace signal 5. Built-in high performance 4th LPF. 6. 6.75MHz/100kHz max. ±1.0dB 27MHz/100kHz typ. -40dB 7. +/- 15KV ESD for aerial discharge. 8. S1/S2 Built-in DC superimpose function. 9. Control pin allows component circuit to handle RGB signals. Package SOP-28 Pin Assignment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 VCC1 CIN MUTE1 CVBSIN YC MIX. YIN GND1 BIAS I/P CYIN CLP.
